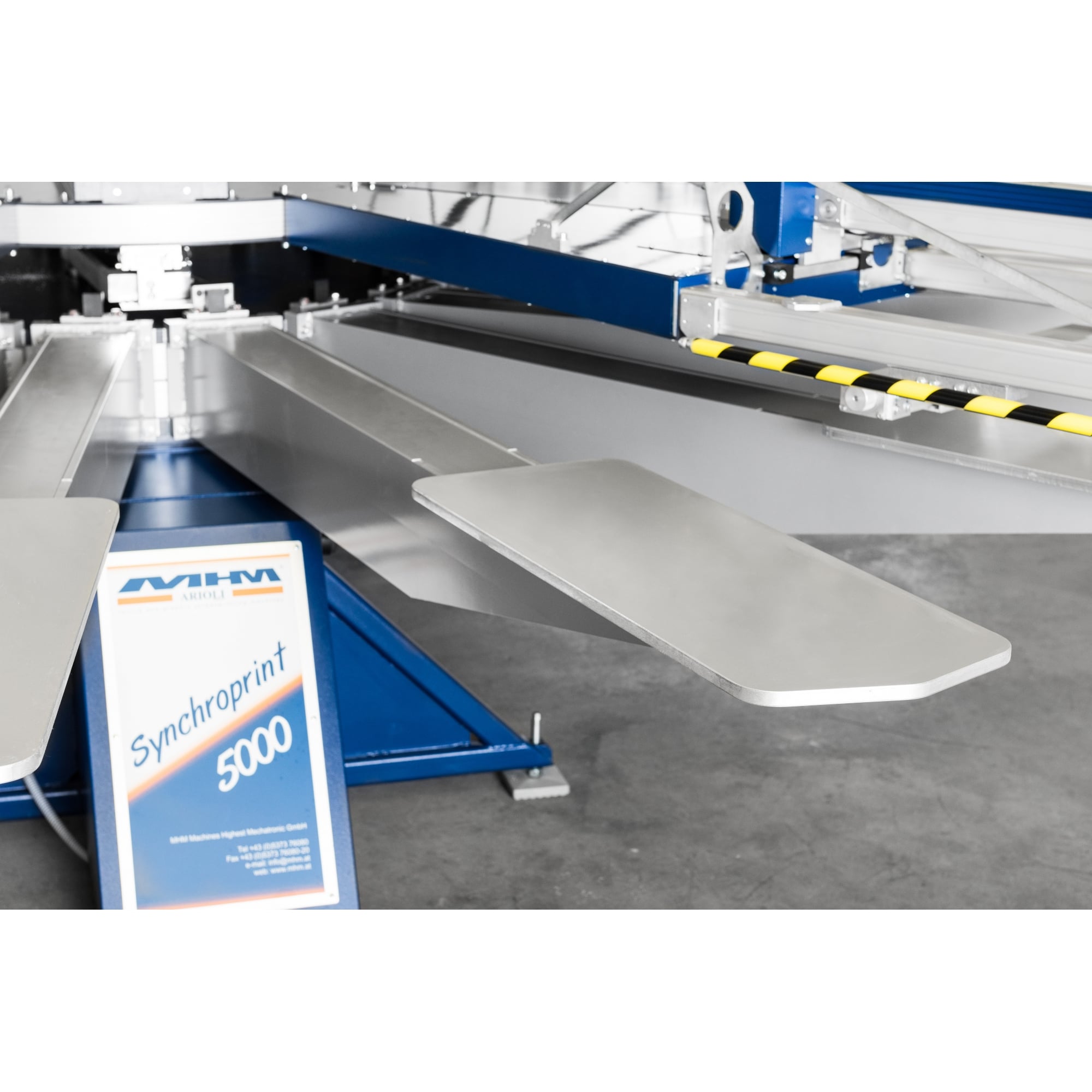

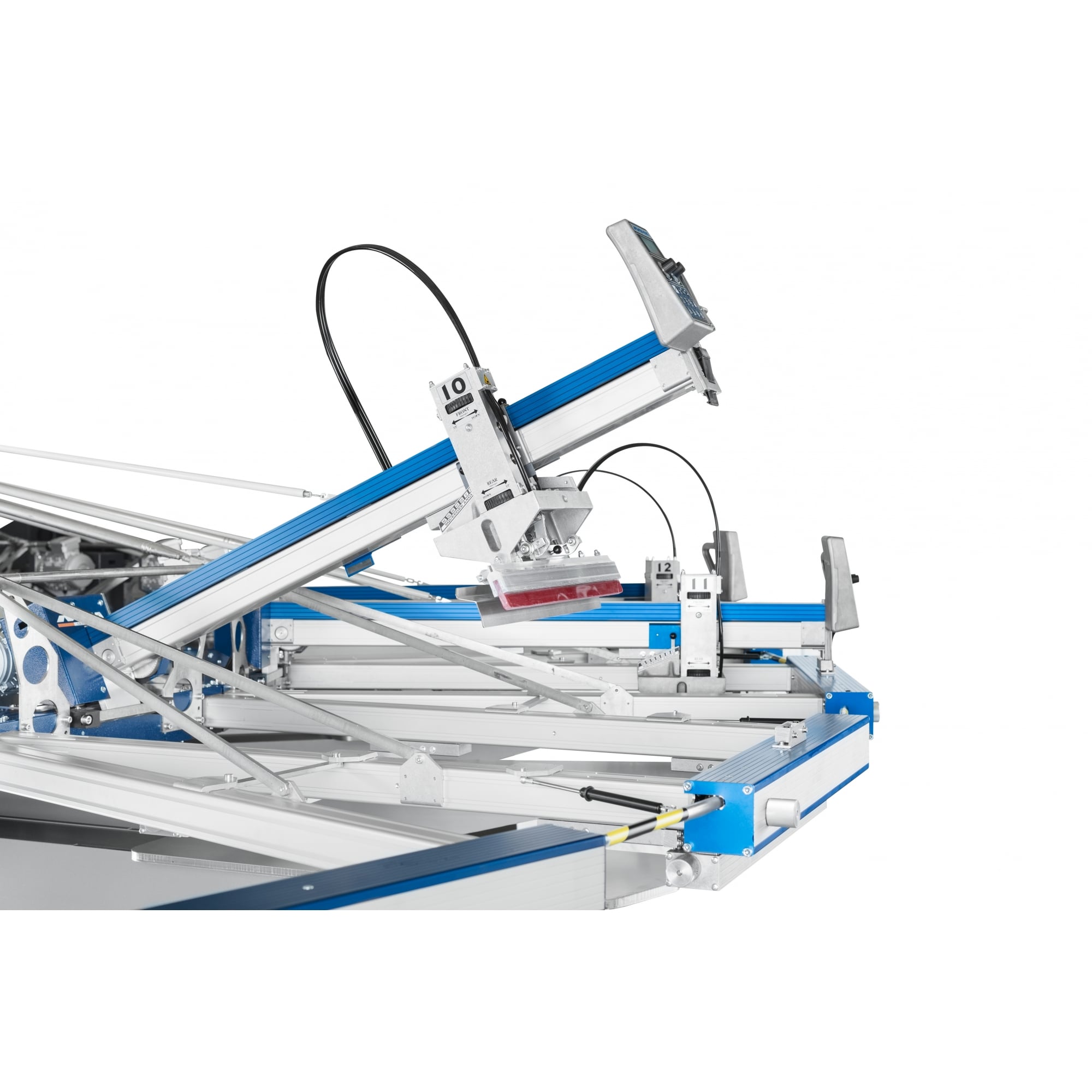

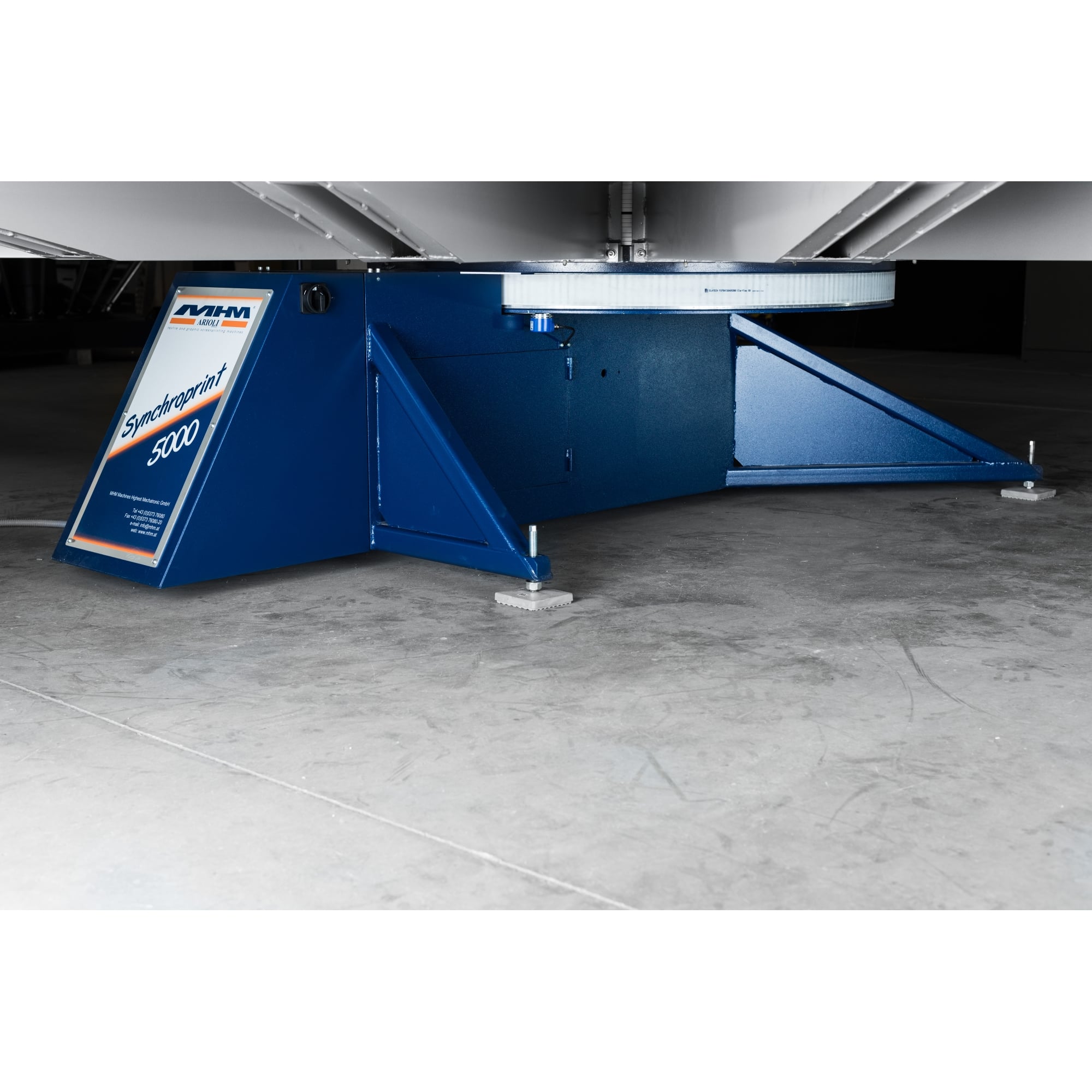

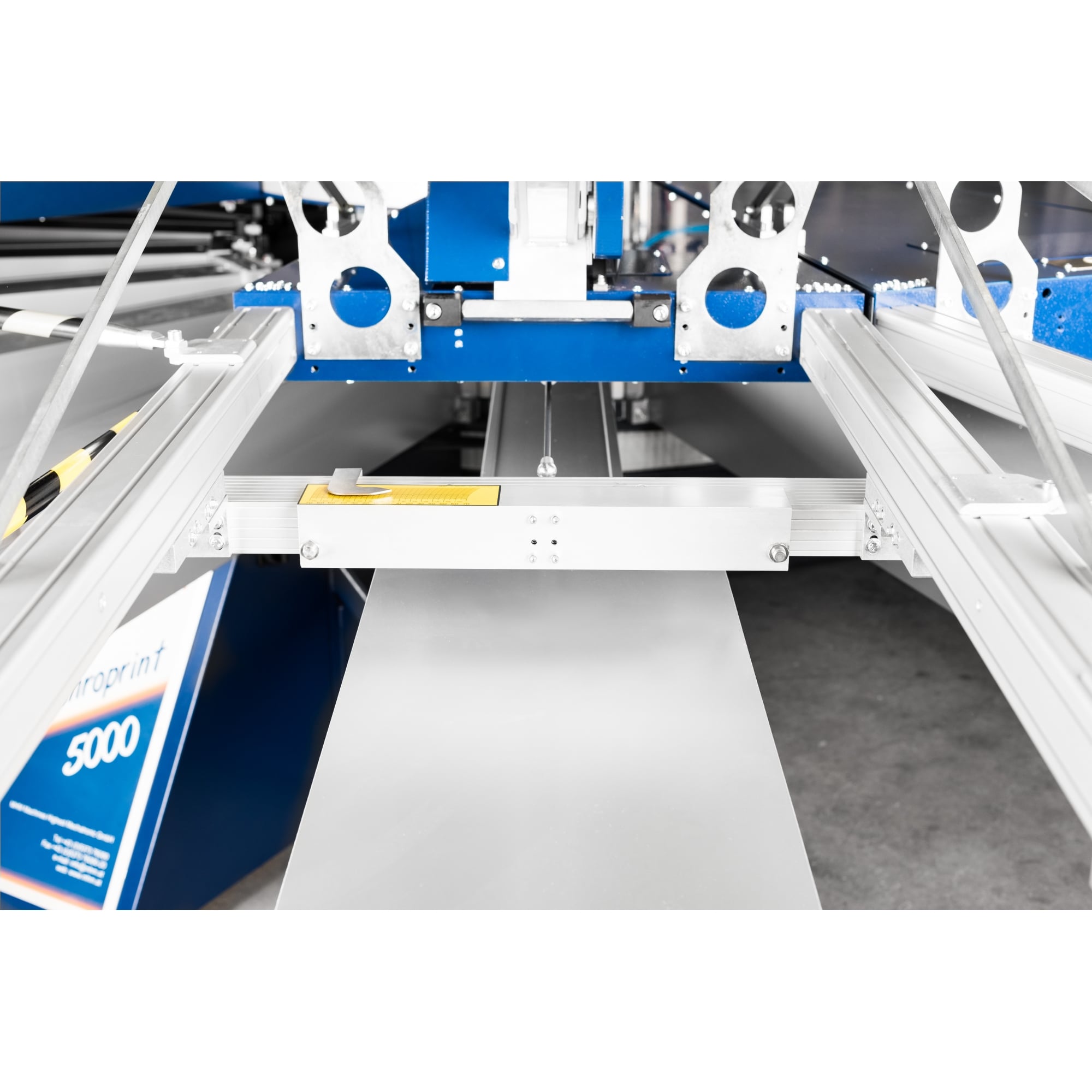

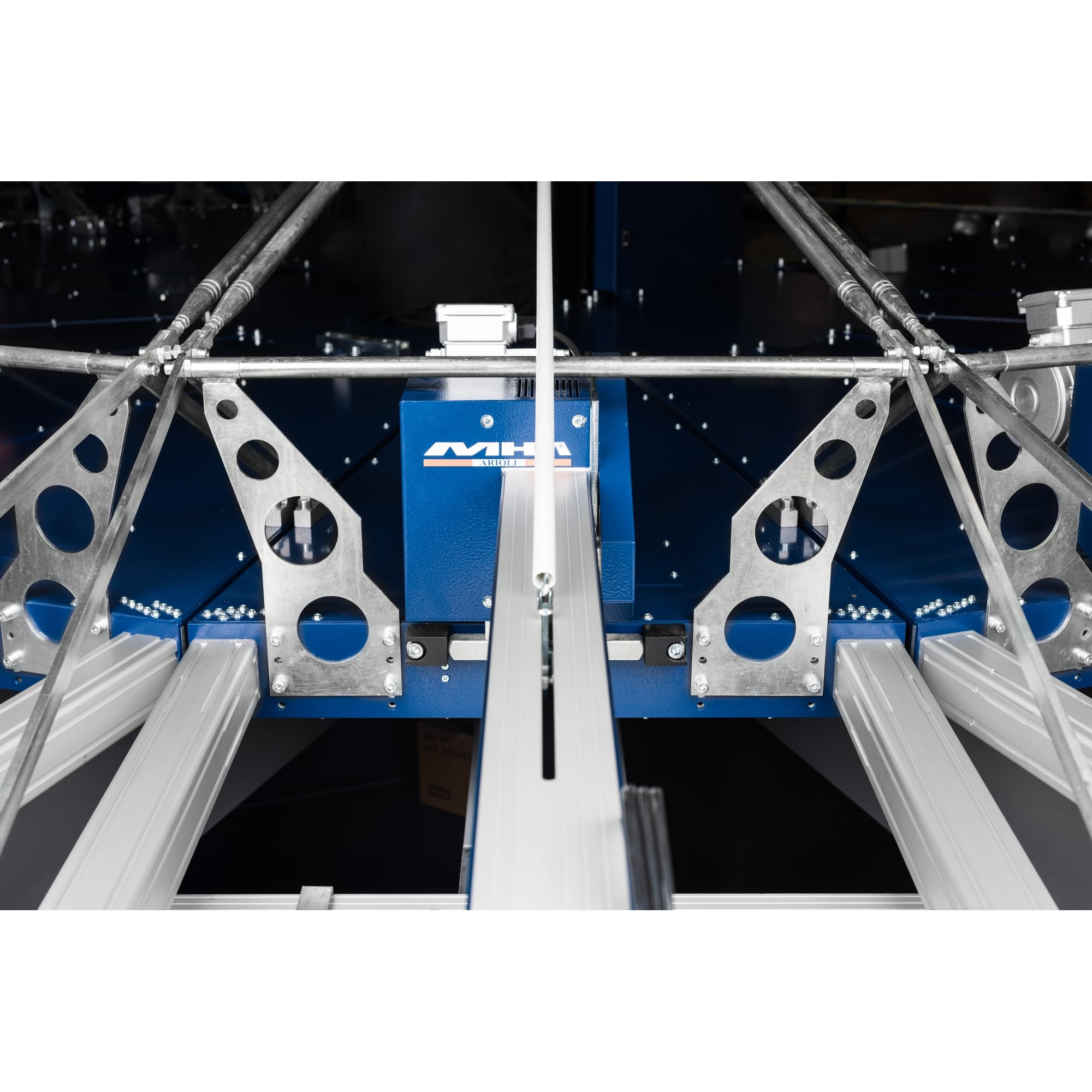

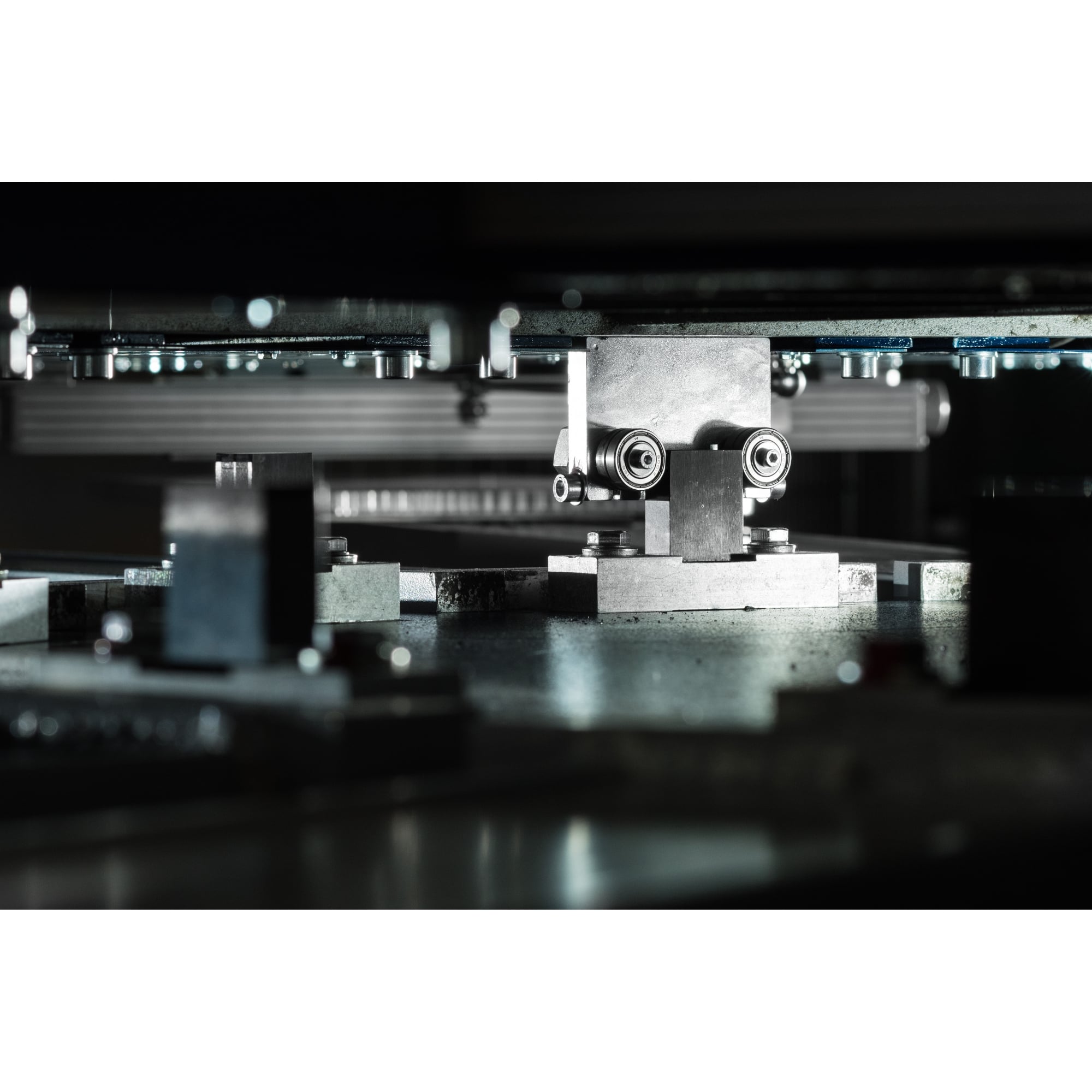

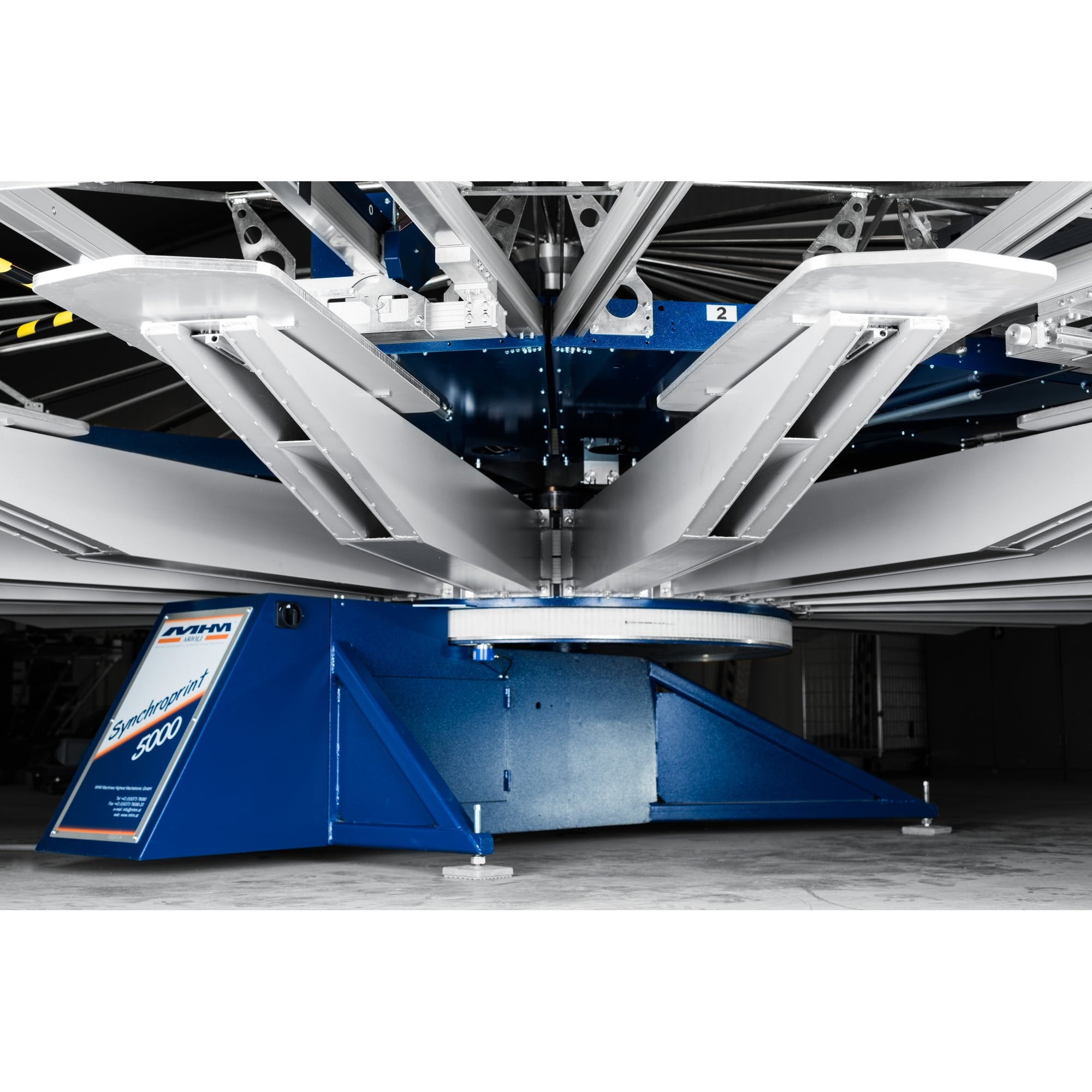

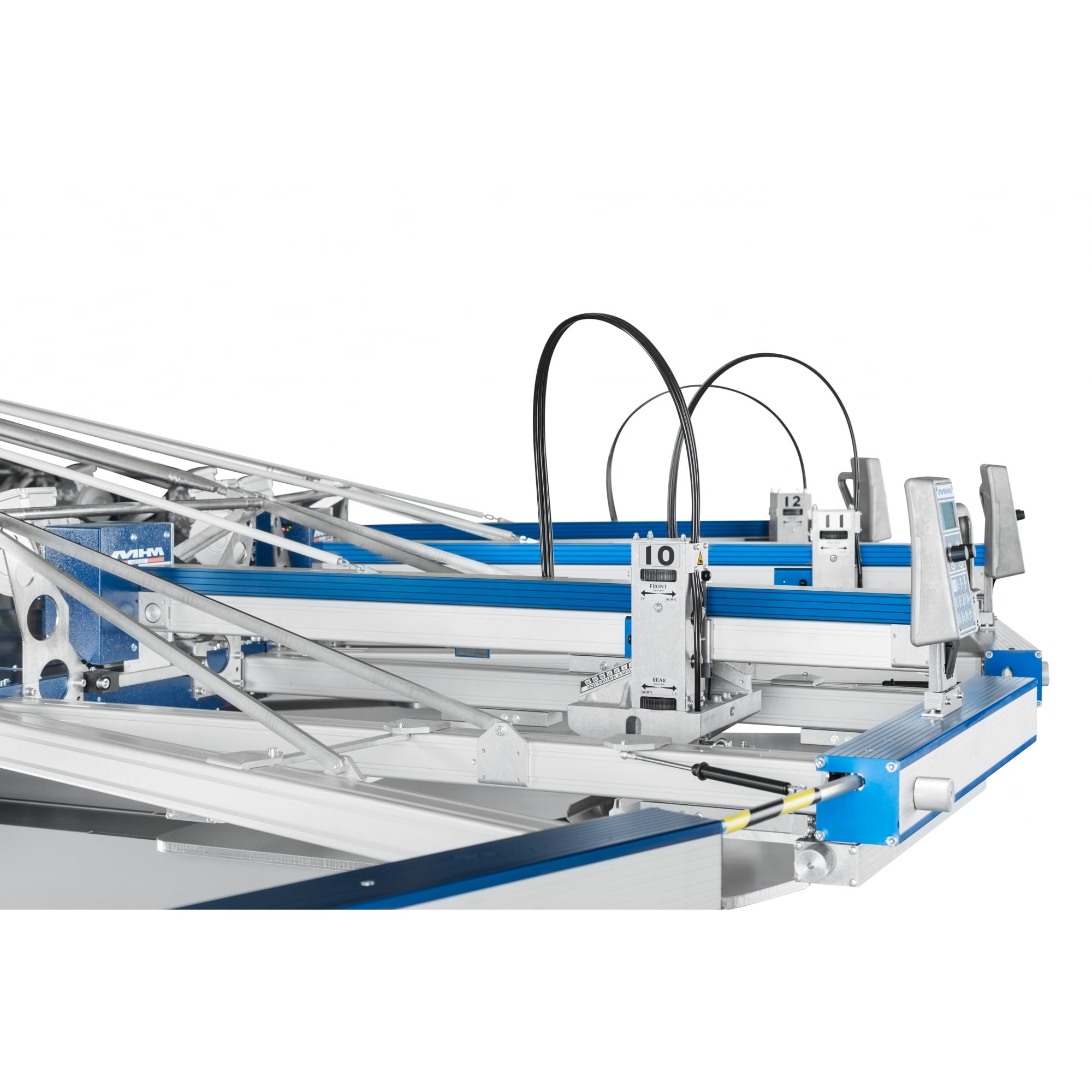

Synchroprint 5000 Automatic Screen Printing Press
SKU : MHMSP5000
Free Next Day Delivery
(UK Mainland Only)
On Consumable orders over £250 when ordered before 3pm
Finance Available
On Most Machinery
Please Contact us for Further info
Ask about Synchroprint 5000 Automatic Screen Printing Press
Product Details
Continuing our renowned pioneering heritage, the Synchroprint 5000 offers the ultimate in sophistication, combining advanced technology with innovative design and superb ease of use.

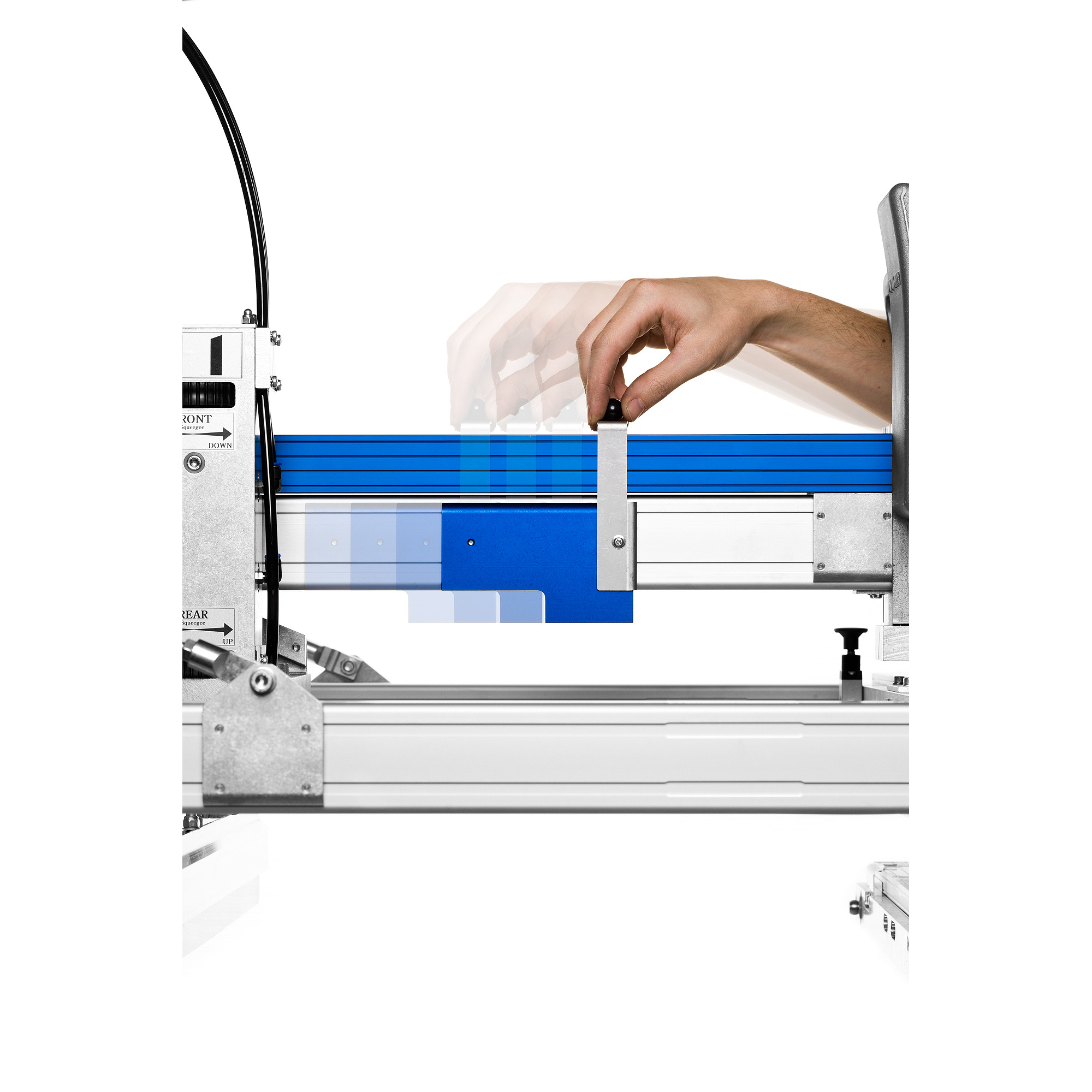

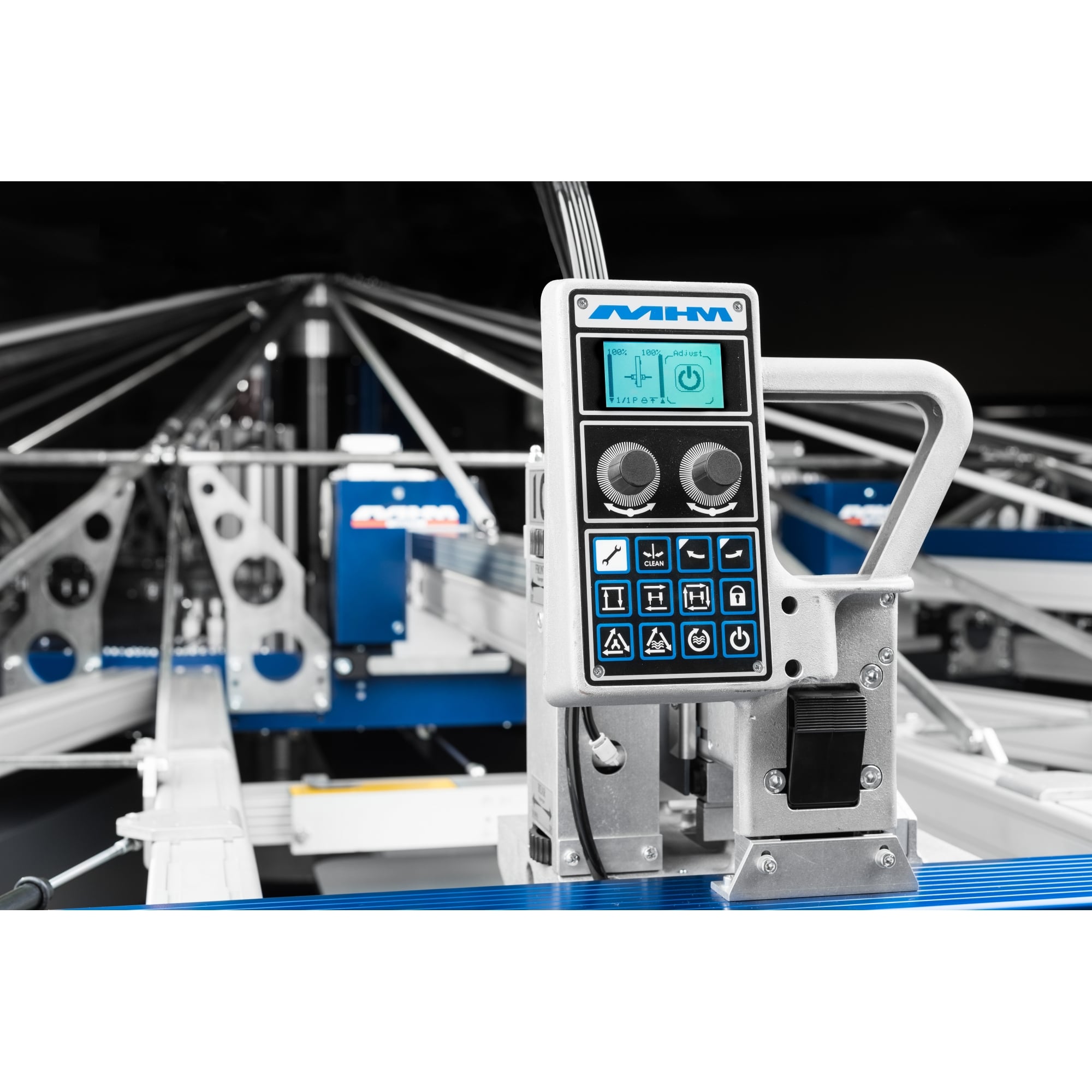

This powerful AC-Servo driven press comes complete with tablet control, 'WIFI' integration with online support, industrial grade PCB's for industry leading reliability and the incredible AUTOMATIC 'GOTO' SCREEN REGISTRATION for CTS integration and set-up times lower than any other press in the industry.
With un-rivalled efficiency and ultra high-performance, the iconic Synchroprint 5000 is the first choice of many of the industry's leading print shops, not to mention numerous multi-award winning screen printers throughout the world...
SpecificationsSP 08SP 10SP 12SP 14SP 16SP 18SP 20 Number of pallets 8 10 12 14 16 18 20 Max. number of colours 6 8 10 12 14 16 18 Max. print area (Standard) 50 x 70 cm / 20 x 27.5" Max. print area (Jumbo) 70 x 100 cm / 27.5 x 39" (Only available up to 14 pallets) Max. print area (Super Jumbo) 80 x 110 cm / 31.5 x 43" (Only available up to 12 pallets) Max. frame size (Standard) 75 x 112cm / 29.5 x 44" Max. frame size (Jumbo) 91 x 144cm / 36 x 56" Max. frame size (Super Jumbo) 105 x 154cm / 41 x 60" Diameter (Standard) 505 cm / 199" 505 cm / 199" 555 cm / 219" 600 cm / 236" 640 cm / 252" 690 cm / 272" 735 cm / 289" Diameter (Jumbo) 575 cm / 226" 625 cm / 246" 685 cm / 270" 735 cm / 289" n/a Diameter (Super Jumbo) 635 cm / 250" 675 cm / 266" 740 cm / 291" n/a Height of machine185cm / 72.8"
Weight of machine (kg/lbs) 2100 / 4630 2300 / 5070 2550 / 5620 2740 / 6040 3150 / 6950 3640 / 8030 3890 / 8580 Air requirement (l/min / CFM) 500 / 17.7 550 / 19.5 600 / 21.2 650 / 23 700 / 24.7 750 / 26.5 800 / 28.3 Air pressure (min) 8 bar/116 psi (filtered, dry air supply only) Drive System AC Servo-Drive Indexer / AC Electric Squeegee Drive Electrical supply 3 ph - 380/400V - 50/60 Hz (+/-5%) Electrical requirement (indexer) 2.5 kW Electrical requirement (per printhead) 0,6 kW Production capacity 900 - 1400 (pieces/hour)Downloads
