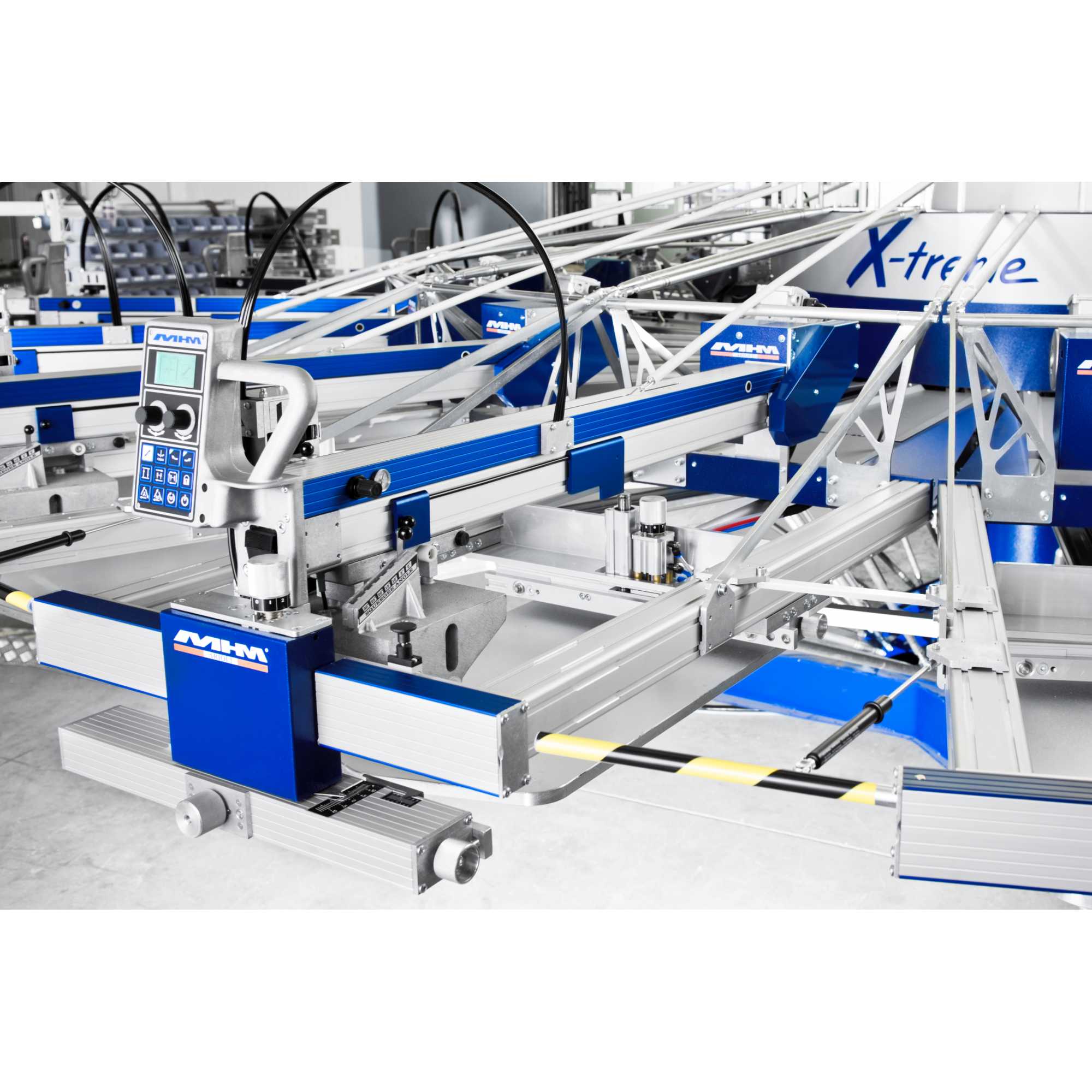

S-Type Xtreme Automatic Screen Printing Press
SKU : MHMSTYPEX
Free Next Day Delivery
(UK Mainland Only)
On Consumable orders over £250 when ordered before 3pm
Finance Available
On Most Machinery
Please Contact us for Further info
Ask about S-Type Xtreme Automatic Screen Printing Press
Product Details
This powerful AC-Servo driven press offers more standard features than any other press in its class, including a host of time saving features designed to reduce set-up times and boost your productivity to a whole new level.

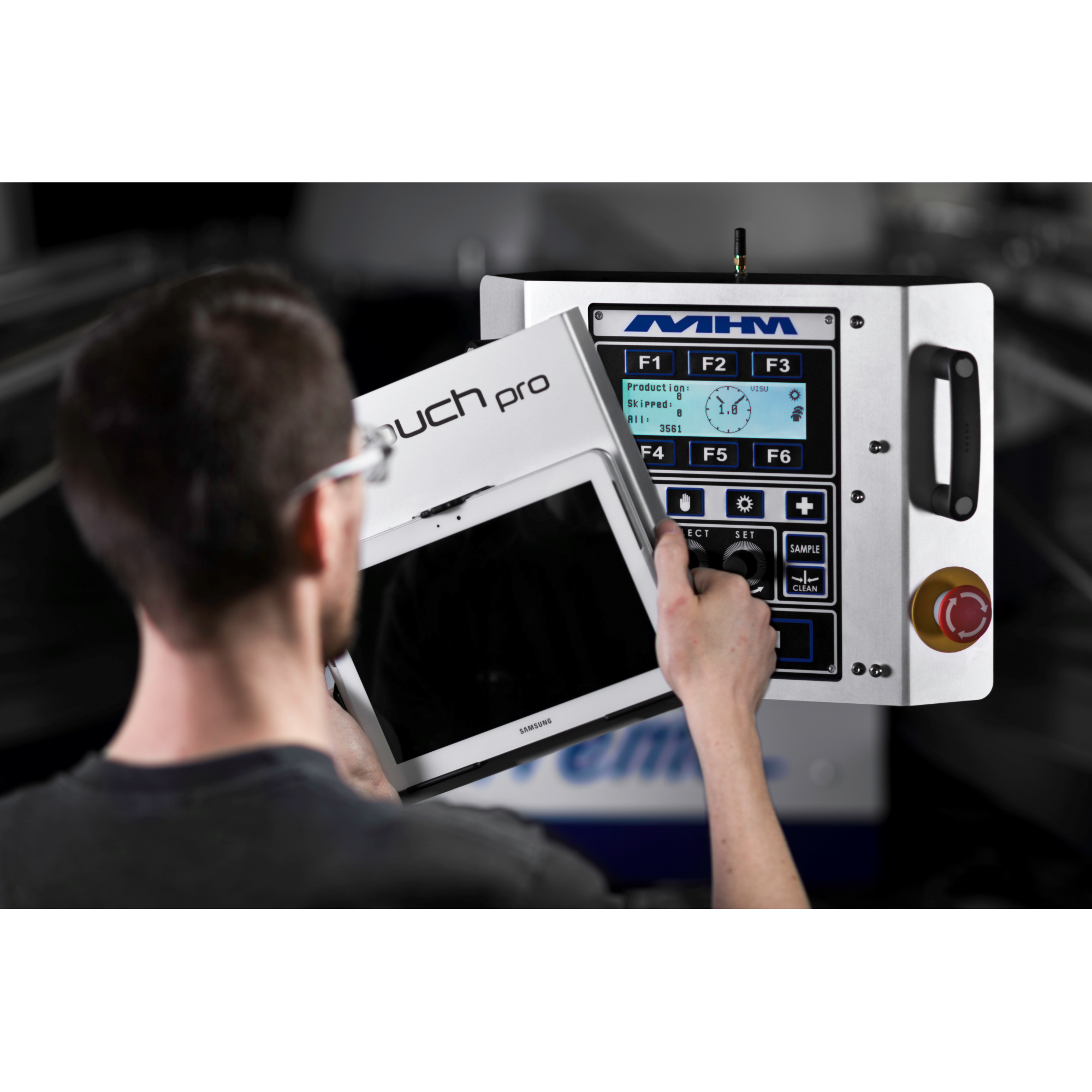

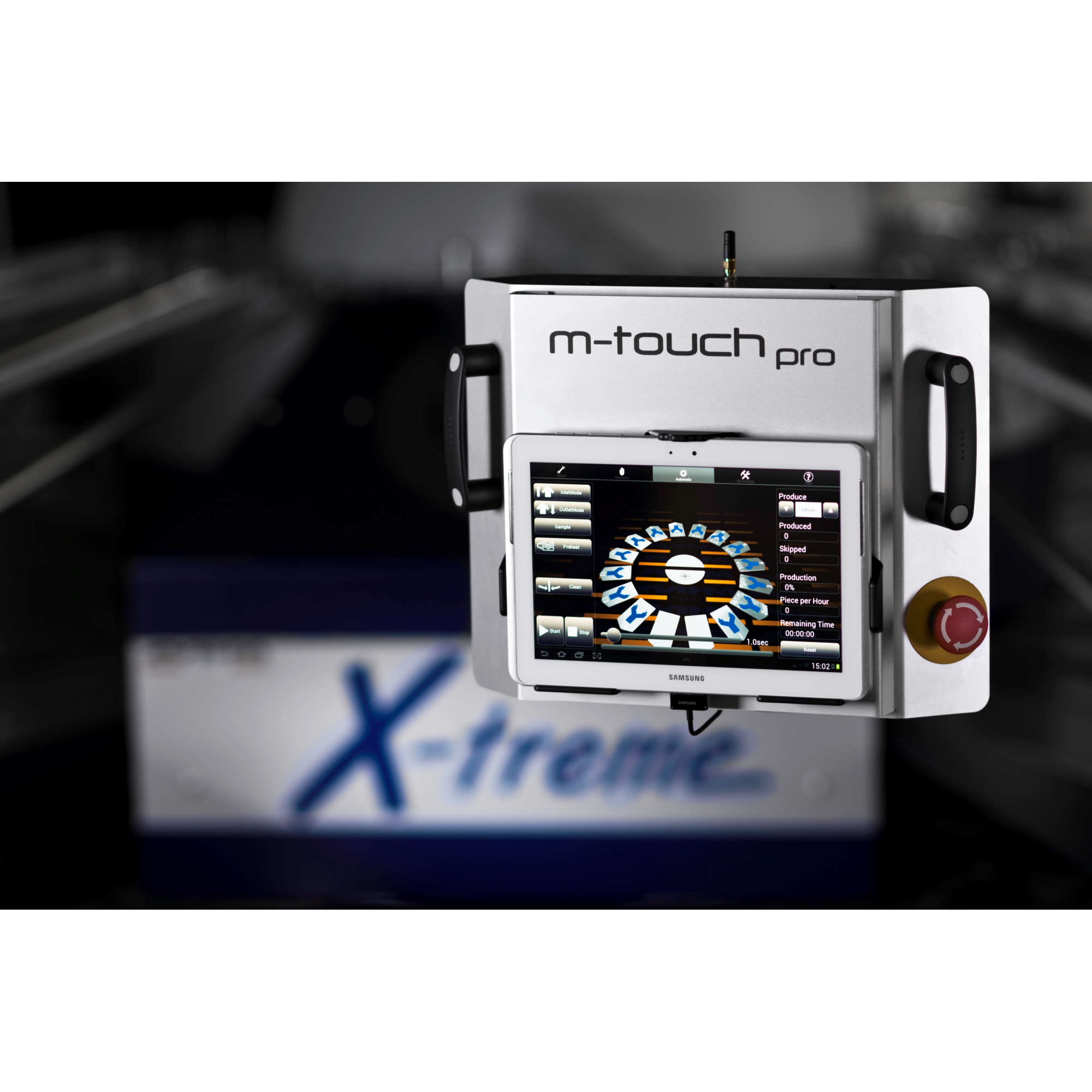

The innovative and user friendly M-Touch Pro touch screen control unit allows simple ‘finger-tip’ commands for all main operator functions and comes with 'WIFI' connectivity for instant technical support, no matter where you are located in the world.
A wide range of configurations offer increased versatility, enabling the S-Type Xtreme to be tailored to fit both your production requirements and your budget precisely...
SpecificationsSPSX 08SPSX 10SPSX 12SPSX 14SPSX 16SPSX 18 Number of pallets 8 10 12 14 16 18 Max. number of colours 6 8 10 12 14 16 Max. print area (cm/inch) 45 x 55 cm / 18 x 22" Max. frame size (cm/inch) 66 x 95cm / 26 x 37.4" Diameter (cm/inch) 415cm / 164" 455 cm / 179" 500 cm / 197" 542 cm / 214" 584 cm / 230" 625 cm / 246" Height of machine 175 cm / 69" Weight of machine (kg/lbs) 1450 / 3200 1680 / 3700 1900 / 4190 2100 / 4630 2650 / 5840 2870 / 6330 Air requirement (l/min / CFM) 350 / 12.4 400 / 14.1 450 / 15.9 500 / 17.7 550 / 19.5 600 / 21.2 Air pressure (min) 7 bar/100 psi (filtered, dry air supply only) Drive System AC Servo-Drive Indexer / AC Electric Squeegee Drive Electrical supply 1 ph - 200/240V - 50/60 Hz (+/-5%) Electrical requirement (indexer) 2 kW Electrical requirement (per printhead) 0,4 kW Production capacity up to 1400 (pieces/hour)Downloads
