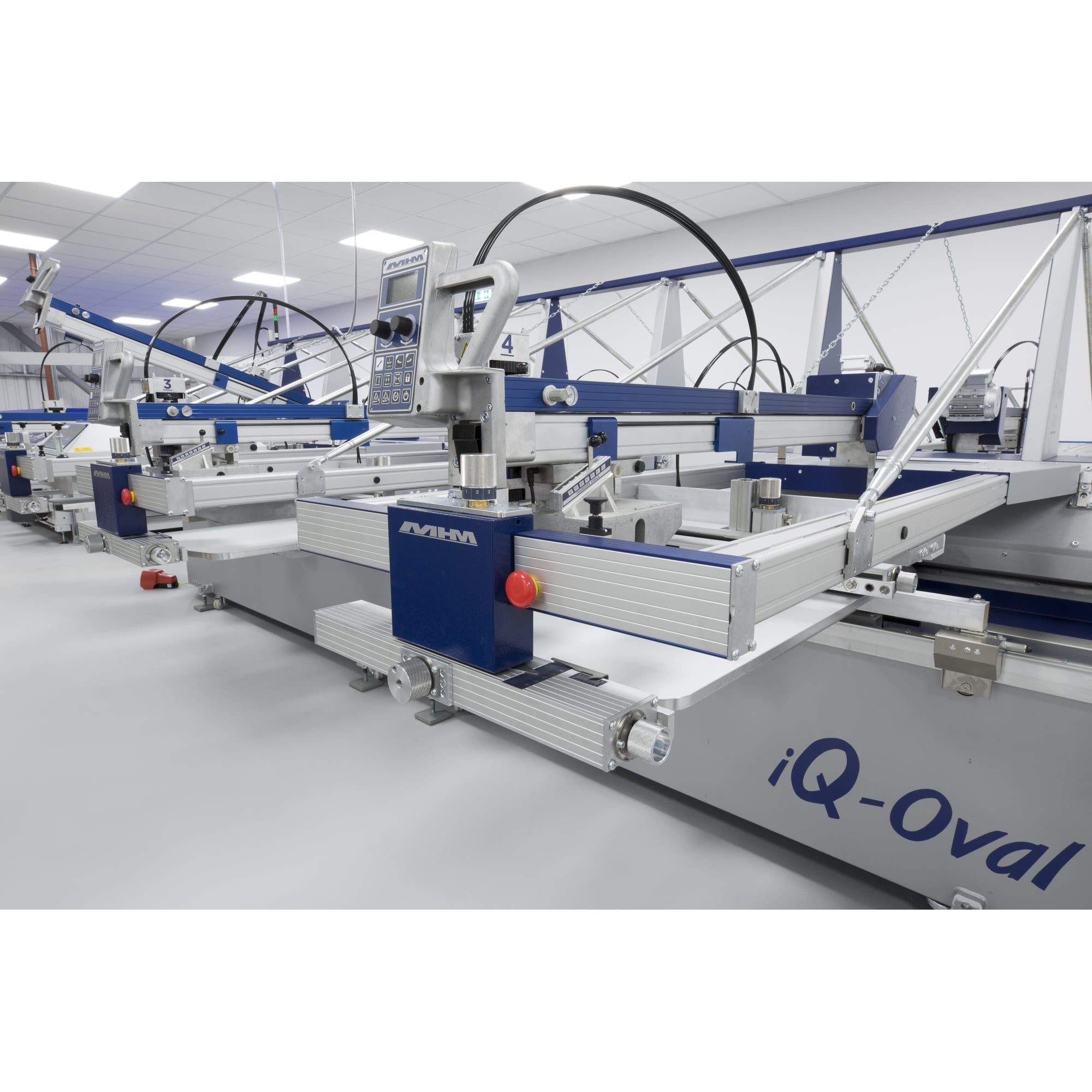

iQ Oval Automatic Screen Printing Press
Free Next Day Delivery
(UK Mainland Only)
On Consumable orders over £250 when ordered before 3pm
Ask about iQ Oval Automatic Screen Printing Press
Product Details

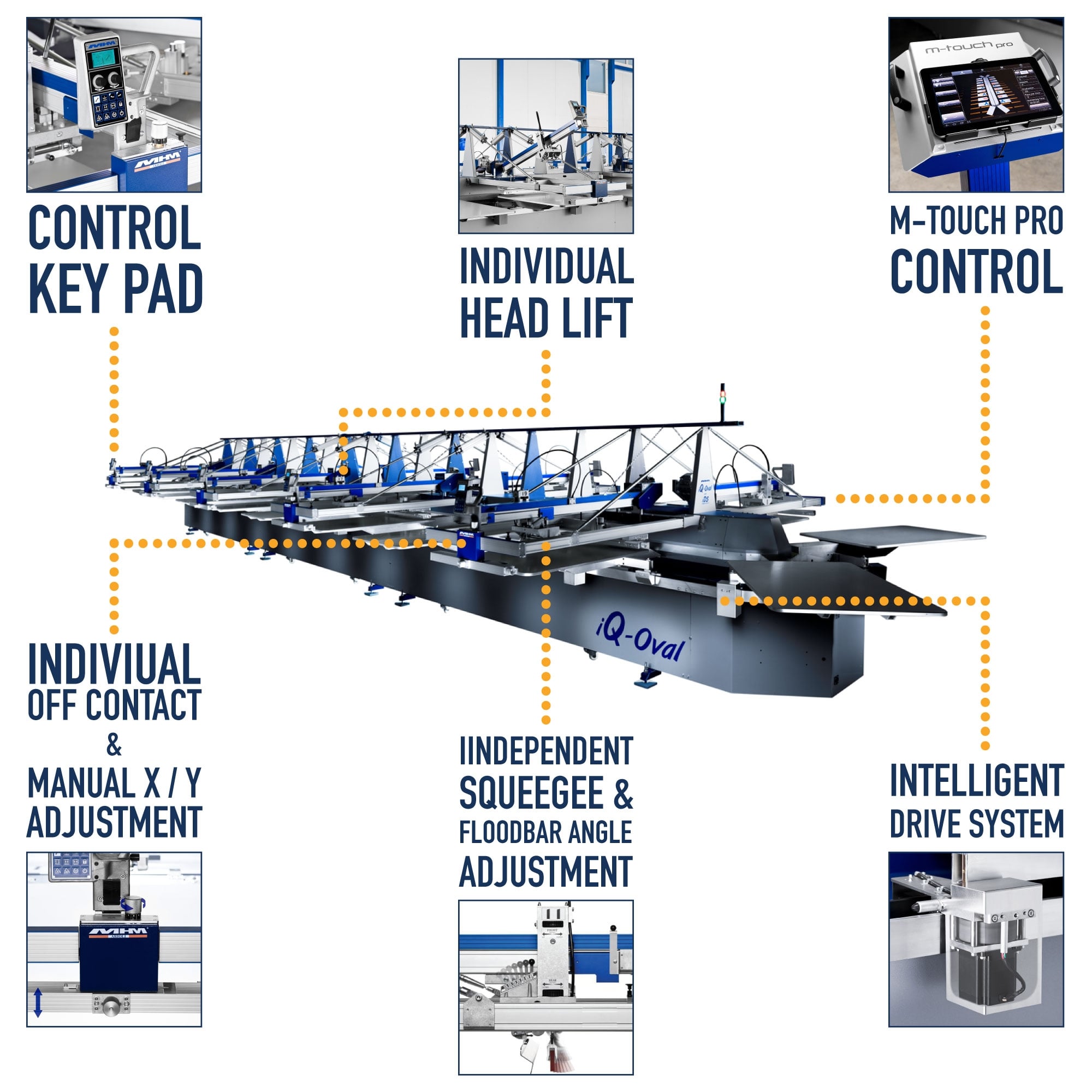

iQ Oval machines are modular offering ‘future proof’ expandability at a fraction of the cost of replacing an existing press which your business has outgrown. As your demands change, simply add additional stations to the original base module to create the perfect configuration to suit almost any production requirement.

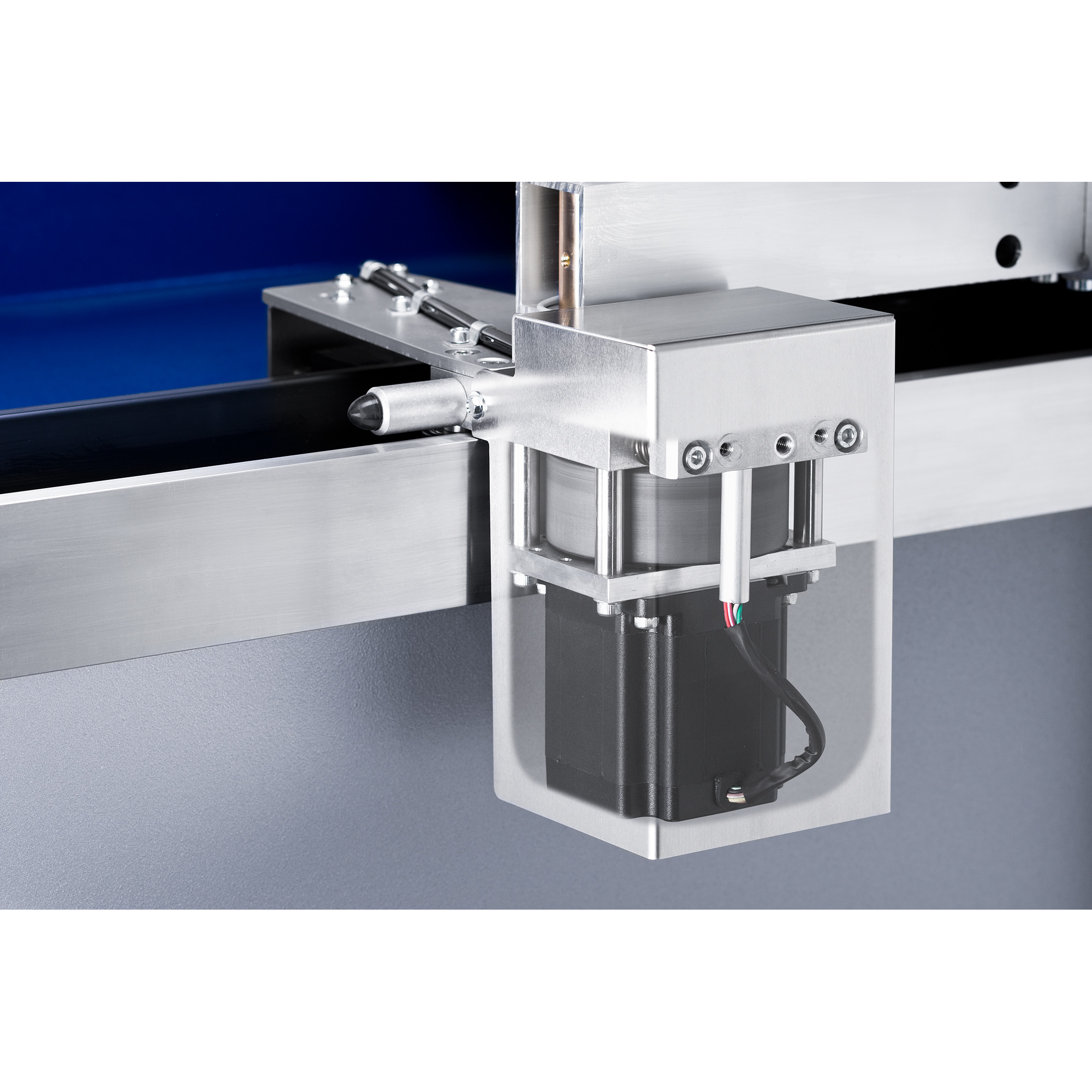

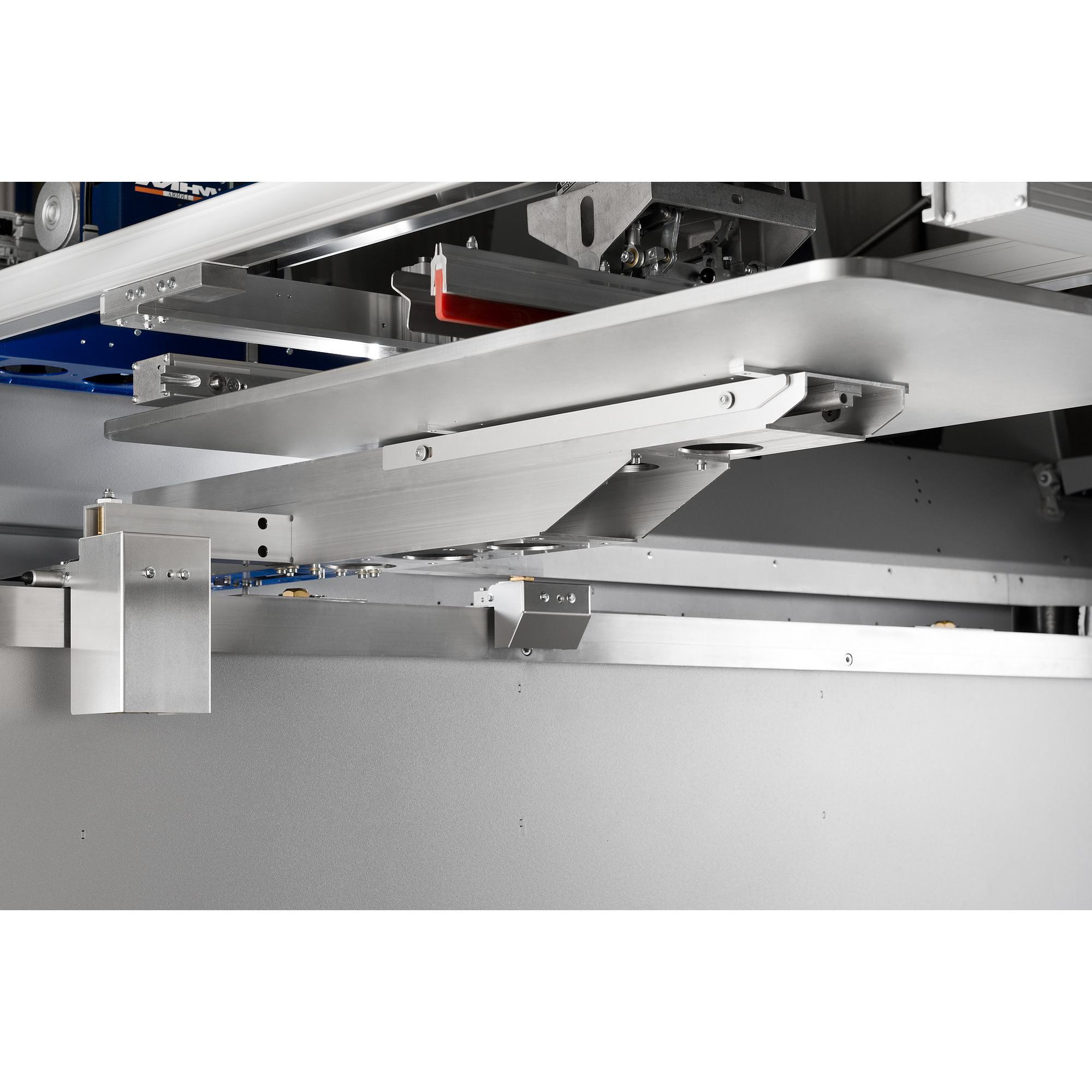

The innovative iDS drive system gives the iQ-Oval greater versatility and better registration accuracy than any other oval press on the market. With no chains or belts to drive the pallet arms, this system offers smooth and precise high-speed movement in either direction and rock-solid long-term reliability.
With safety in mind, the iDS system will stop immediately upon sensing the slightest obstruction, eliminating the need for any safety barriers, making this an incredibly safe press to operate...
Specifications
| Specifications | 50x70cm | 70x100cm | 80x110cm |
|---|---|---|---|
| Number of pallets | 8 | ||
| Max. number of colours | 4 | ||
| Max. print areas (cm/inch) | 50 x 70 cm / 20 x 27,5" | 70 x 100 cm / 27,5 x 39" | 80 x 110 cm / 31,5 x 43" |
| Width of machine (cm/inch) | 400 cm / 158" | 420 cm / 166" | 440 cm / 174" |
| Length of machine (cm/inch) | 600 cm / 236,5" | 660 cm / 260" | 680 cm / 265" |
| Max. frame size (cm/inch) | 105 x 112 cm / 41 x 44" | 105 x 144 cm / 41 x 56" | 105 x 154 cm / 41 x 60" |
| Air consumption (per print head) | 30 litres/min | ||
| Air consumption (per pallet arm) | 15 litres/min | ||
| Air pressure (min) | 8 bar/116 psi (filtered, dry air supply only) | ||
| Drive System | iDS - intelligent drive system (individual drive motor on every pallet arm) | ||
| Electrical supply | 3 ph - 380/400V - 50/60 Hz (+/-5%) | ||
| Electrical requirment (per print head) | 0,4 kW | ||
| Electrical requirment (per pallet arm) | 0,11 kW | ||
| Production capacity (pieces/h) | 1500 | 1380 | 1350 |
