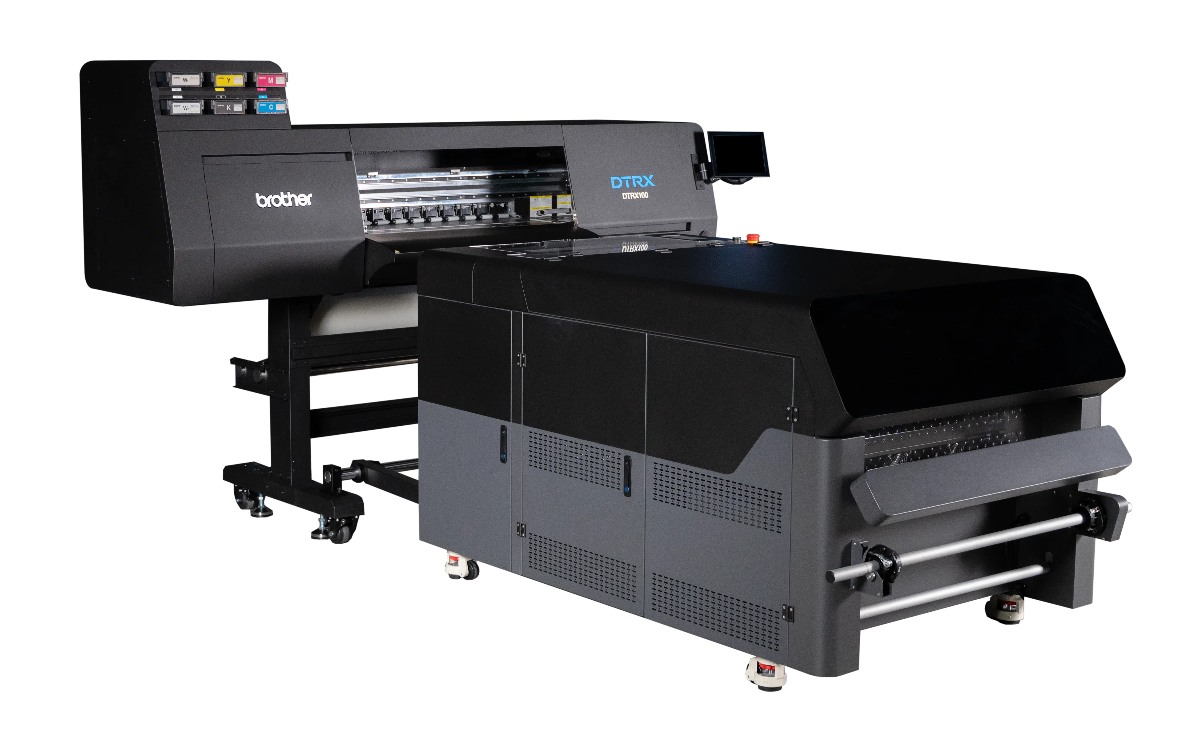

Industrial DTF Production Without Compromise.
The Brother DTRX has been engineered for businesses that demand speed, reliability and exceptional print quality from their Direct-to-Film production.
Developed by one of the world’s most trusted print technology manufacturers, the DTRX combines industrial-grade engineering with a fully integrated DTF workflow to deliver consistent, production-ready results day after day.
Whether you’re producing garment transfers for fashion brands, workwear, promotional products or fulfilment operations, the DTRX is built to help you increase output while reducing downtime and operator intervention.
Call for pricing: 0115 944 2285
Call us

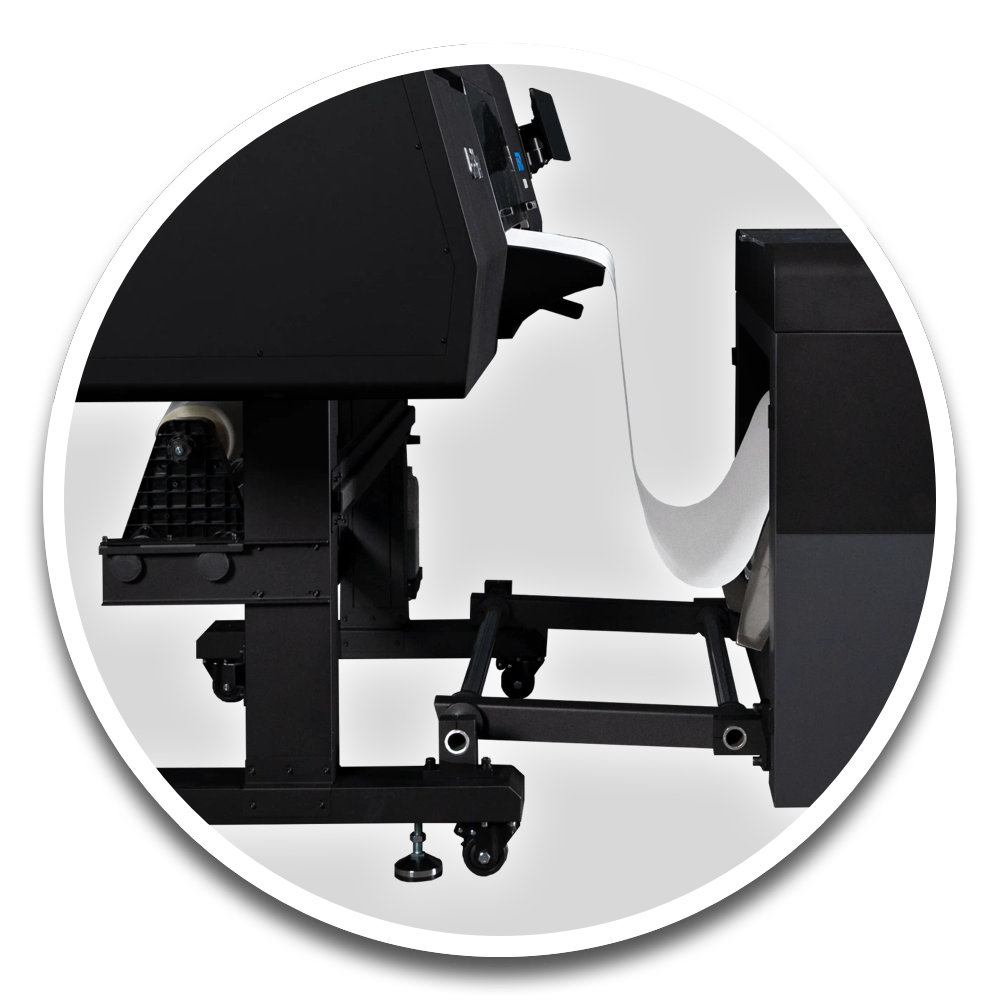

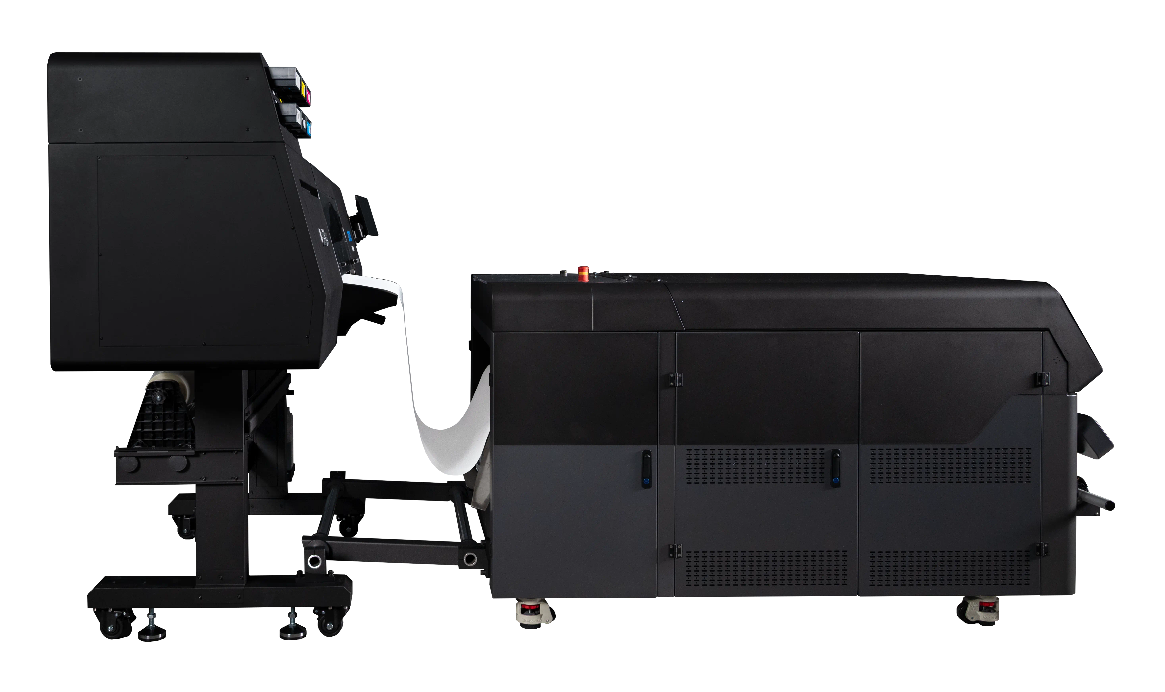

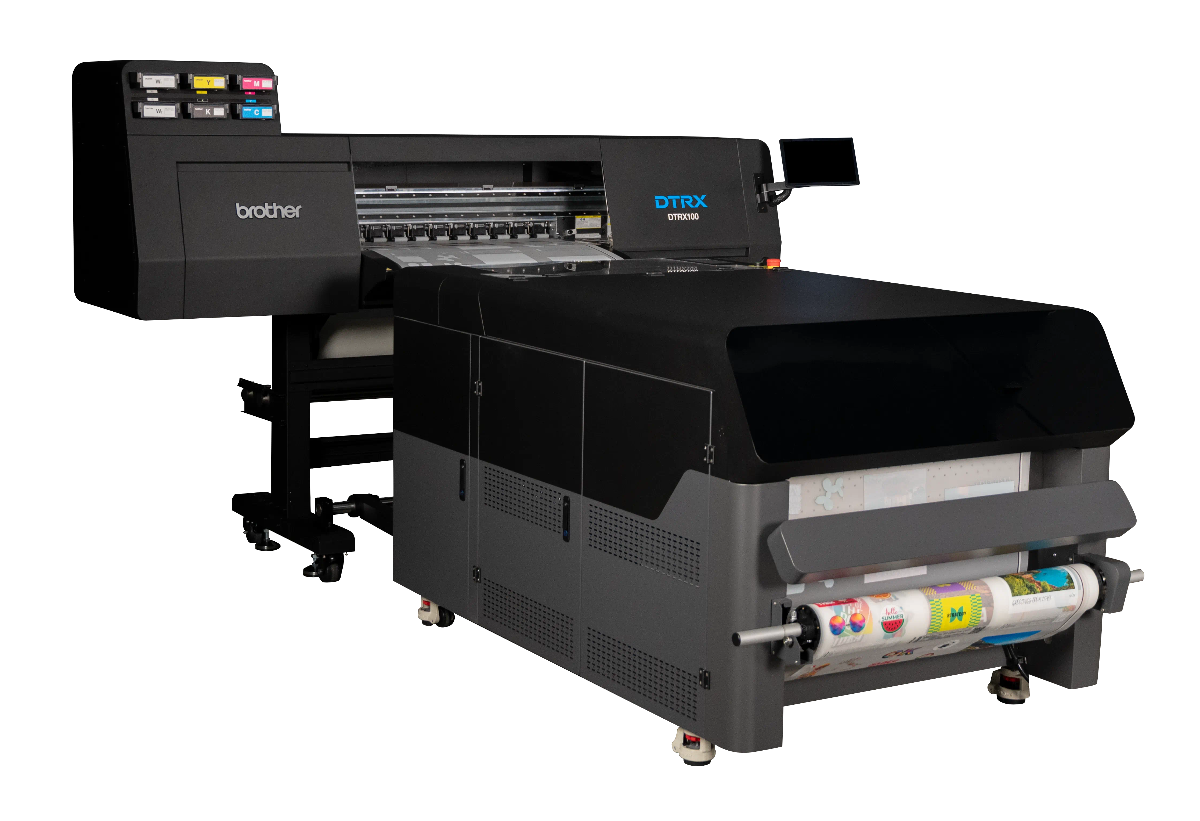

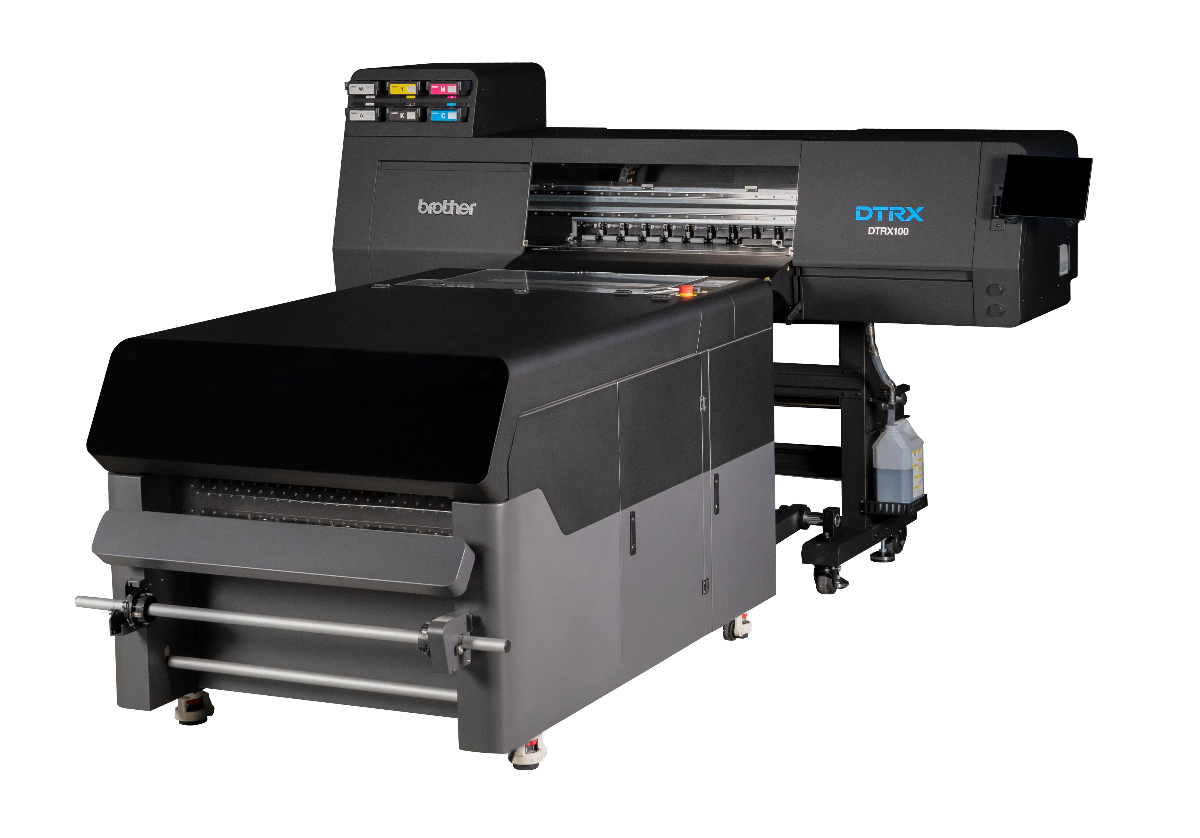

A Complete All-in-One DTF Solution
Unlike many DTF setups that require separate equipment and multiple suppliers, the Brother DTRX provides a complete, fully certified solution.
The system combines:
- 32” roll-to-roll DTF printer
- Integrated powder application system
- Infrared curing unit
- Brother-developed DTF inks
- Compatible film and consumables
Every component has been designed and tested to work together, helping to eliminate compatibility issues while ensuring optimum performance and print consistency.
Built For High-Volume Production
The DTRX has been designed specifically for demanding production environments where uptime and throughput are critical.

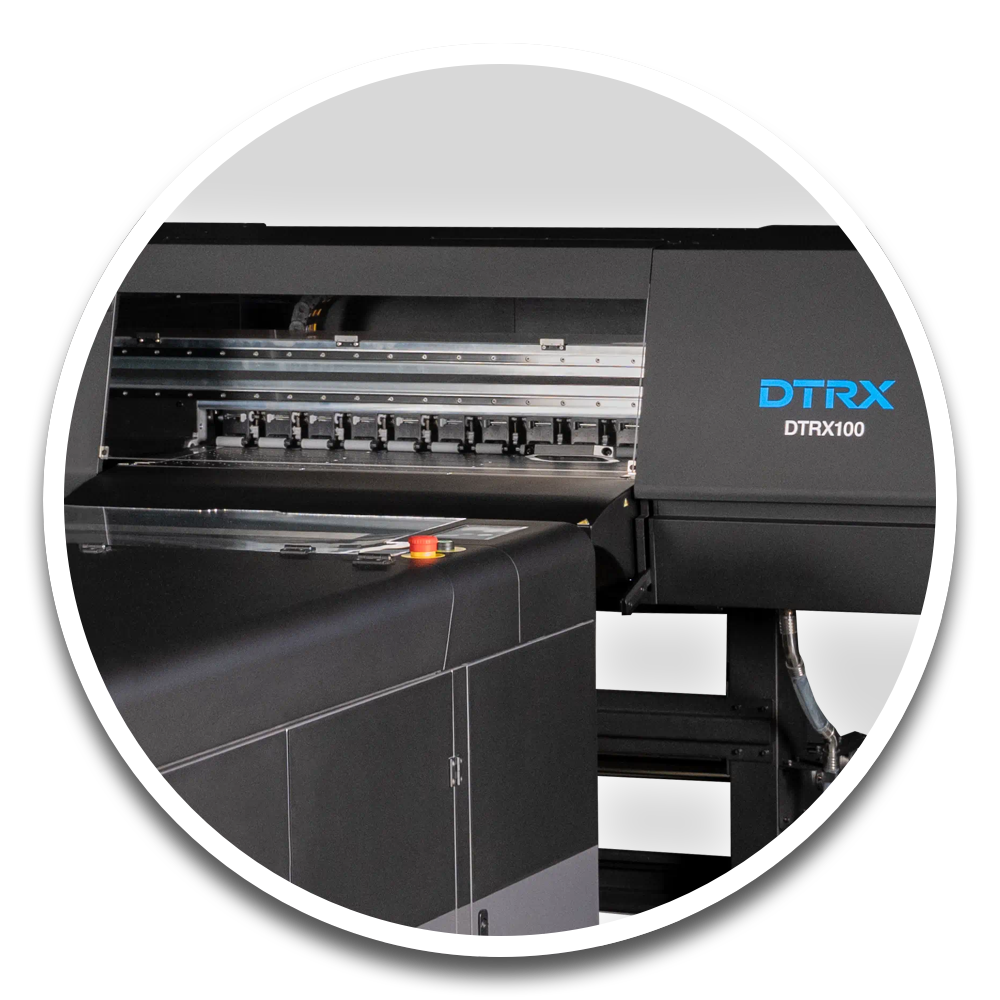

Featuring four industrial Brother printheads (2 Colour / 2 White), the system delivers:
- Production speeds up to 15m² per hour
- Print widths up to 780mm
- Maximum resolution of 600 x 1200 dpi
- Exceptional colour vibrancy and fine detail reproduction
This combination of speed and quality allows businesses to confidently handle larger order volumes without sacrificing print performance.

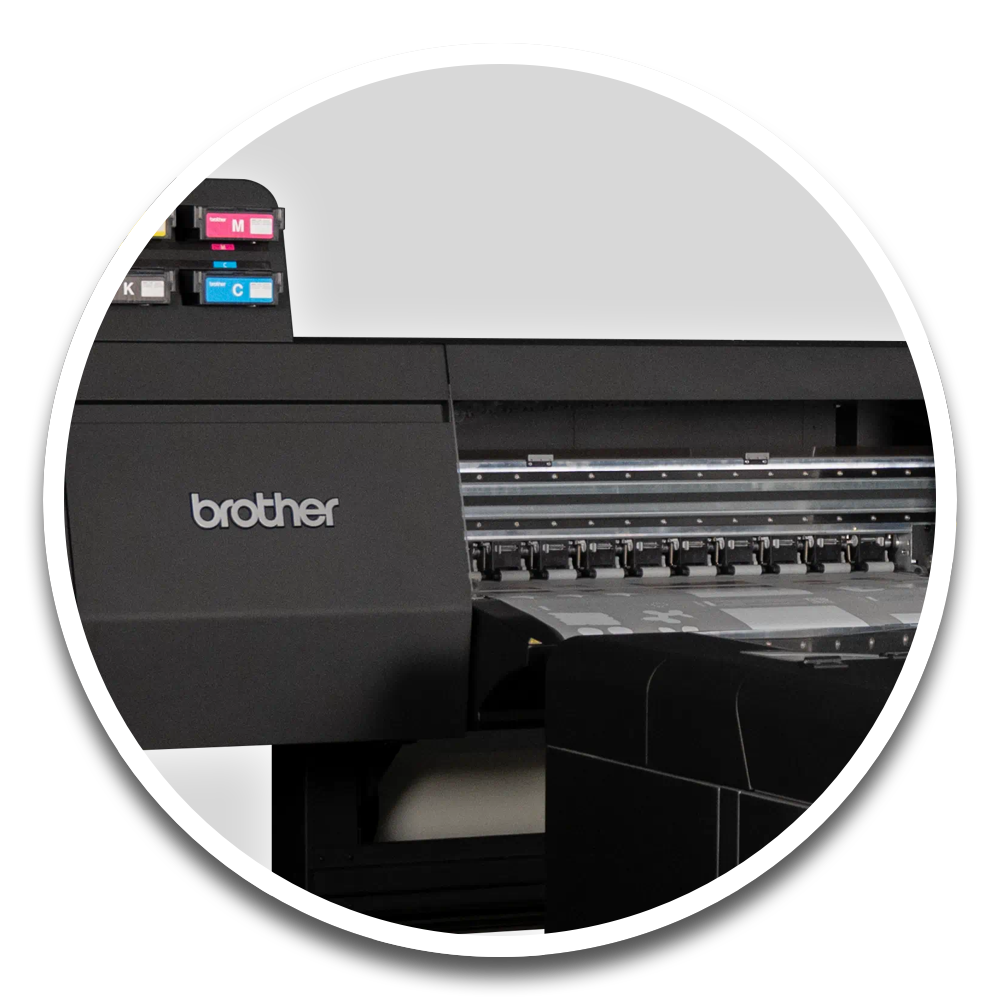

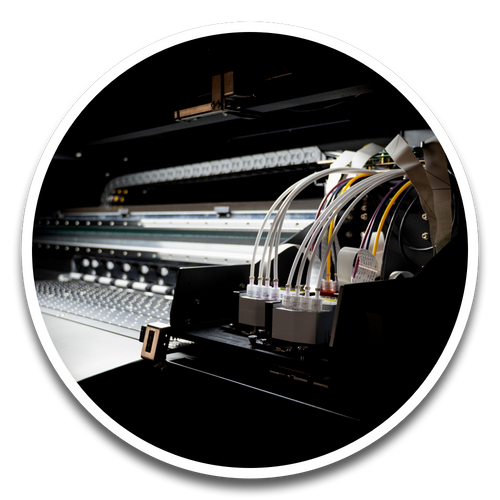

Advanced Brother Printhead Technology
At the heart of the DTRX is Brother’s proven industrial piezo printhead technology.
Designed for continuous production environments, these printheads provide:
- High-speed printing performance
- Accurate ink placement
- Sharp image detail
- Reliable long-term operation
- Consistent colour reproduction
Brother’s expertise in industrial print technology ensures the DTRX delivers dependable performance even during extended production runs.
Seamlessly Fits Into Your Existing Workflow
Adopting new equipment shouldn’t mean rebuilding your production process.
The Brother DTRX has been designed to integrate smoothly with industry-leading RIP software and existing workflows, allowing businesses to increase production capacity without major operational changes.
This makes it an attractive upgrade for growing print businesses looking to scale efficiently.
Printer Specifications
| Specification | Details |
|---|---|
| Size Printer | 2310W × 850D × 1610H mm |
| Weight | 268kg |
| Resolution | Maximum 600 × 1200dpi |
| Print Speed | Up to 15m²/h |

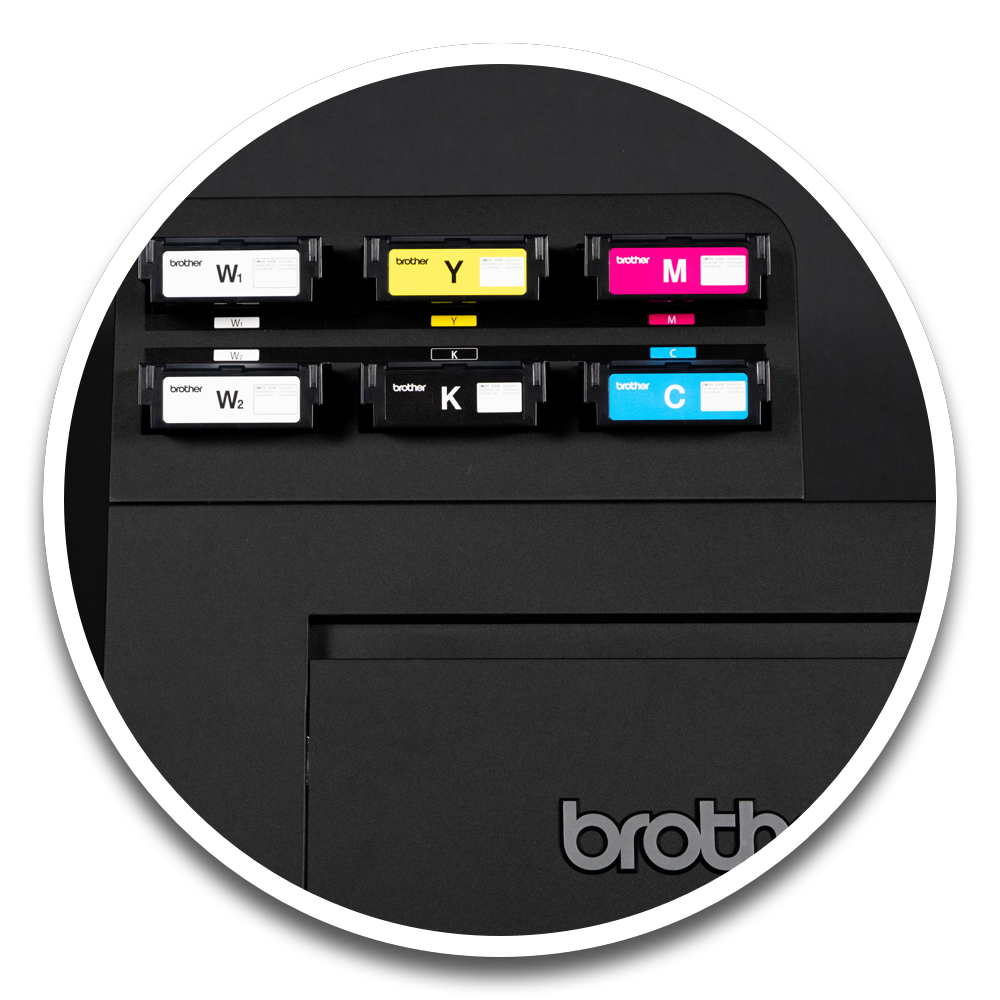

| Ink | 5-Colour Water-Based Pigment Ink (CMYKW) |
| Ink Capacity | 700ml (CMYK + 2 White) |

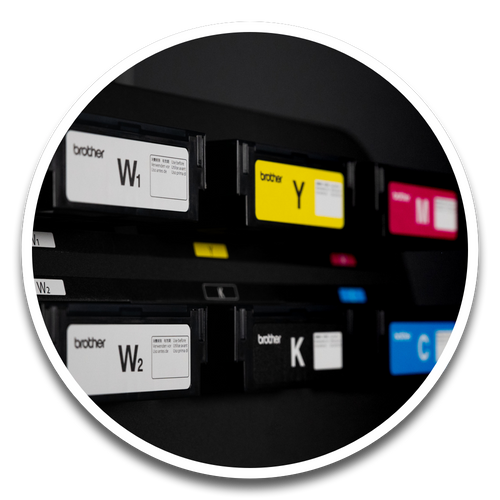

| Cartridge | 6 (CMYKWW) |
| Print Head | 4 Brother Print Heads (2 Colour, 2 White), 300dpi |
| Carriage Speed | 677mm/s |
| Circulation | White Ink Tube Circulation and Manifold Circulation |

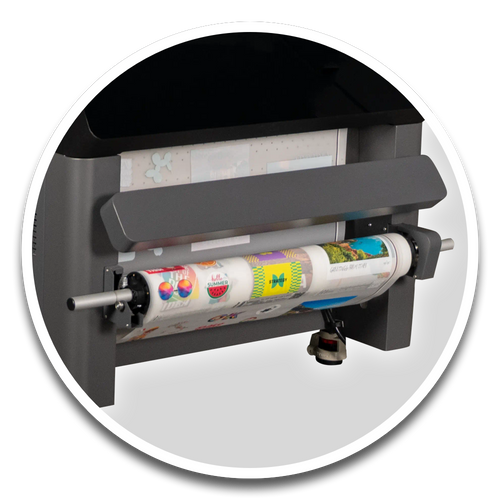

| Roll Specification | Width: 300mm–800mm Material: PET Thickness: 0.5mm Maximum Roll Diameter: 150mm Maximum Roll Weight: 13kg |
| Print Width | Maximum 780mm |
| Dryer | 3-Way Dryer |
| Size Dryer | 1950W × 1120D × 1060H mm |
| Panel | 10" Colour LCD Touch Panel |
| Interface | Ethernet 1000BASE-T |
| Power Supply | 200–240V ±10%, 50/60Hz ±Hz ×1. AC100–120V single-phase requires separate power supply. |
| Power Consumption | 7.5A |
| Operating Environment | 18–30°C, Humidity 20–85% |
| Printing Environment | 20–28°C, Humidity 35–65% |
| Compliance Standards | IEC62368-1 |
| Ink Certification | ECO Passport (Certified), GOTS |
| RIP Software | Cadlink Print Factory V12 Included |
That's not all, there's more from this DTRX Printer...

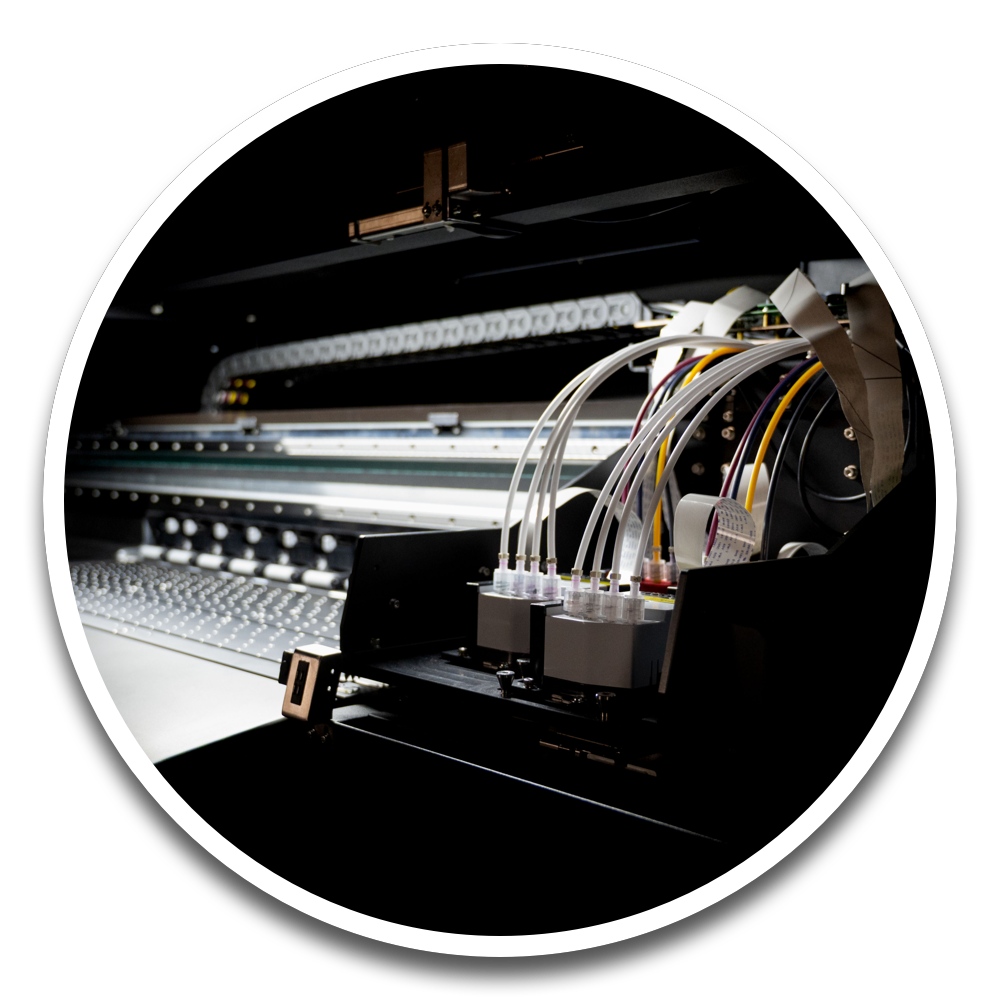

Reduced Maintenance. Maximum Uptime.
One of the biggest challenges in DTF production is maintaining white ink systems and preventing downtime.
The DTRX tackles this with a sophisticated Industrial Maintenance Station that includes:
- Automatic white ink circulation
- Manifold circulation technology
- Wet wiper cleaning system
- Automated maintenance functions
These features help keep ink flowing correctly, reduce the risk of clogging and significantly minimise manual maintenance requirements.
The result is more productive printing time and less time spent servicing the machine.
Developed Specifically For DTF Printing
The DTRX uses specially formulated Brother water-based pigment inks developed exclusively for high-performance DTF production.
Benefits include:
- Vibrant colour output
- Excellent wash durability
- Strong adhesion characteristics
- Consistent white ink performance
- Reliable high-speed production
The inks are also certified to recognised international standards including OEKO-TEX®, GOTS and CPSIA compliance, providing confidence for brands and garment decorators alike.
Backed By Brother Reliability
Download Brochure
When investing in industrial print equipment, support matters.
The DTRX benefits from Brother’s decades of experience in print technology and is supported by an established global service network.
From installation and training through to ongoing technical support, users benefit from the confidence that comes from working with one of the most respected names in the industry.
Your industrial journey in DTRX starts here...
Looking to increase your DTF production capacity with a reliable industrial solution?
Complete the form below and one of the MHM Direct team will contact you with pricing, availability, demonstrations and expert advice on whether the Brother DTRX is the right solution for your business.
