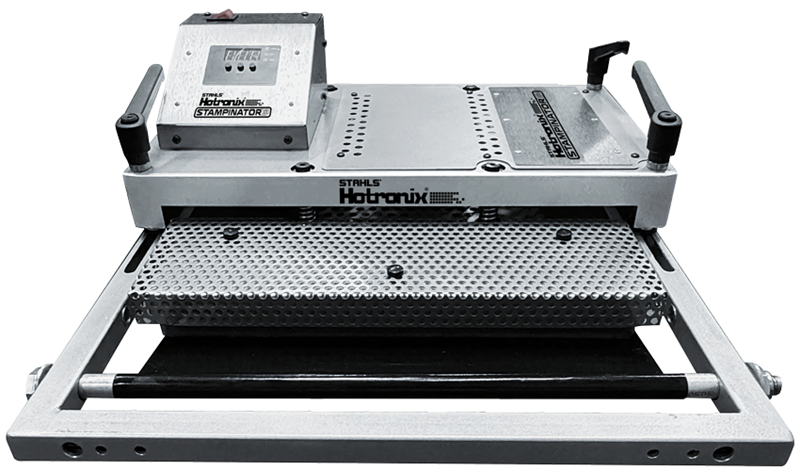

Hotronix Stampinator 480 In-Line Heat Press & Flash Cure Unit

Hotronix Stampinator® 480 Automatic Screen Printing Heat Press & Flash Cure Unit

The Hotronix® Stampinator® 480 is a high-production in-line heat press and flash cure solution for automatic textile screen printing presses. For UK screen printers searching for a Stampinator, Stampinator 480 or Stampinator UK solution, it offers a compact way to add pressing, curing and transfer application directly to an existing automatic textile press.

Designed for screen printers who want to increase production speed, improve print quality and add more finishing capability without expanding their footprint, the Stampinator 480 integrates directly into the printhead position of most major automatic textile screen printing presses.

Instead of using a conventional flash cure unit alone, the Stampinator heat press combines heat, pressure and automated in-line operation. It can pre-press garments, stamp underbases, flash cure ink, smooth garment fibres and apply heat transfers in one production step. This makes the Stampinator 480 particularly relevant to owners of automatic textile presses, high-volume screen printers, transfer printers and businesses considering a new flash cure unit or production heat press.

Stampinator 480 for Automatic Textile Press Owners

The Stampinator 480 is compatible with most major automatic screen printing presses, including M&R, MHM, ROQ, Workhorse, TAS and Anatol. It can be installed using front, rear or side clamps, providing a flexible route to adding in-line heat pressing and curing to an existing automatic screen printing line.

Flash Cure, Heat Press and Transfer Application in One Unit

• Replaces a conventional flash unit with high-efficiency in-line heat press technology
• Pre-presses garments before printing
• Stamps underbases and flash cures in a single step
• Smooths fibres to help produce a cleaner, higher-quality print surface
• Applies DTF transfers, HTV, foil, rhinestones and other heat-applied materials
• Compatible with plastisol inks, including standard and low-cure formulations
• Compatible with water-based screen printing inks

Designed for Production Speed

Engineered for speed and repeatability, the Stampinator 480 can support production of up to 480 shirts per hour. Digital temperature control provides accurate, consistent heat, while the flat, warp-resistant heating surface is designed for high-volume garment production.

Why Screen Printers Choose the Stampinator 480

• Ideal accessory for automatic textile screen printing presses
• Combines flash curing and heat pressing in-line
• Reduces the need for separate off-line pressing operations
• Supports both ink curing and transfer application workflows
• Helps smooth garment fibres for improved print finish
• Suitable for established screen print shops and high-volume production environments

Stampinator 480 FAQs

Can the Stampinator 480 be used as a flash dryer?

Yes. The manufacturer states that the Stampinator 480 can be used as an in-line flash dryer, with typical flash times of around 2–3 seconds depending on the application and press setup.

Can the Stampinator 480 apply DTF and heat transfers?

Yes. The Stampinator 480 is designed for high-speed in-line transfer application and can be used with DTF, HTV, foil, rhinestones and other heat-applied materials.

Which automatic screen printing presses can the Stampinator 480 fit?

It is designed for most major automatic presses, including M&R, MHM, ROQ, Workhorse, TAS and Anatol.

How fast is the Stampinator 480?

The Stampinator 480 is designed for production speeds of up to 480 shirts per hour, making it especially suitable for high-volume automatic screen printing and transfer production.

Technical Highlights

• Powered by USA-made Hotronix® digital technology

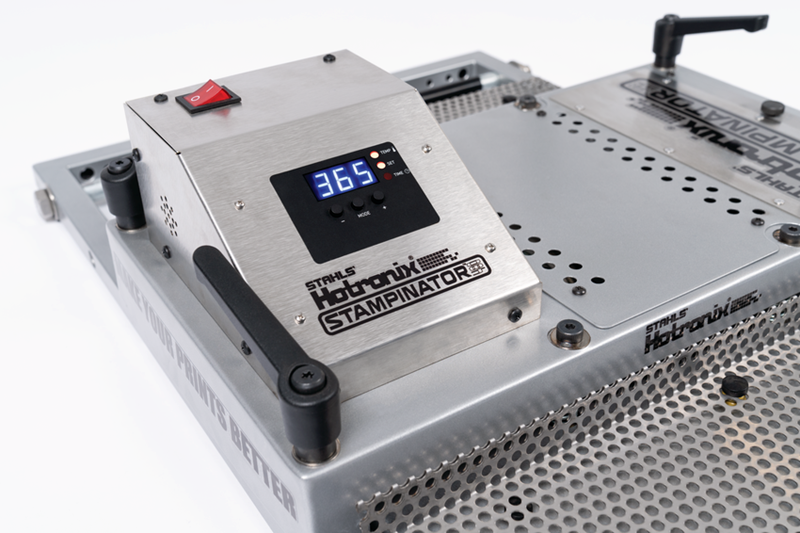

• Digital temperature control
• Flat, warp-resistant heating surface
• Green Heat Conductive 1/8" silicone pads conform to seams, V-necks and uneven surfaces
• Mounting options: front, rear or side clamps

Shipping

• Dimensions: 21" × 31.13" × 8" (53 × 79 × 20 cm)
• Weight: 70 lbs (32 kg)

For screen printers comparing flash cure units, heat presses or accessories for an automatic textile press, the Hotronix Stampinator 480 offers a unique way to combine curing, pressing and transfer application directly within the production line.
